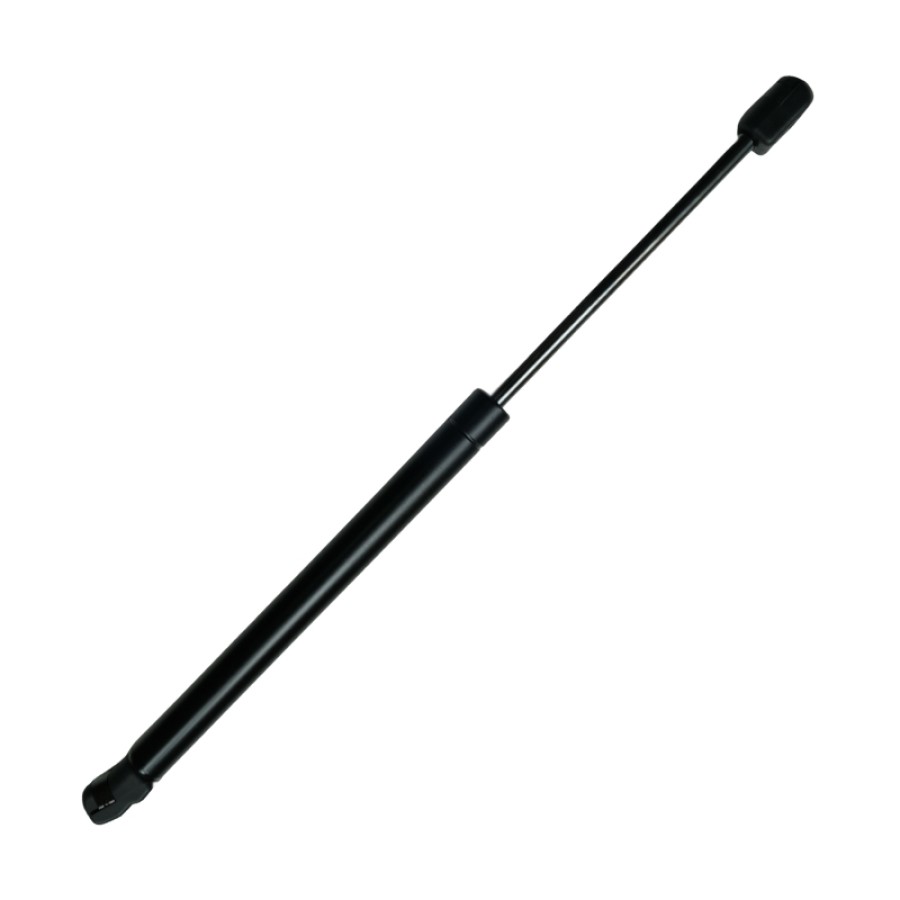

817702b001 Hyundai Santa Fe Liftgate Lift Support

Specification

• Extended Length A [in]: 17.87
• Stroke C [in]: 6.89
• Compressed Length B [in]: 10.71
• Force (Lbs): 148
• Force Newtons: 658
• Shaft Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39"
• Body Connection: Ball Socket U Band (Nylon)=10mm=3/8"=.39" 16 Deg Angle
• Rod Diameter (MM): 8
• Cylinder Diameter (MM): 18
• A Interchanges: 593440, 817700W001, 81770-0W001, 817700W002, 81770-0W002, 817700W010, 81770-0W010, 817700W011, 81770-0W011, 817702B00, 81770-2B00, 817702B001, 81770-2B001, 817702B010, 81770OW001, 81770-OW001, PM1017, SG367028, 817702b001 Hyundai Santa Fe Liftgate Lift Support

Key Features of Gastac Gas Spring

• Nitrided piston rod delivers long-lasting, corrosion-resistant performance

• Reliable lifespan of up to 60,000 cycles

• Backed by a free 2-year warranty for peace of mind

• Factory-direct Gastac Gas Spring for consistent quality and value

• Free, easy returns if the product does not fit

• Fast delivery: typically ships within 5–10 business days


Hyundai Santa Fe 2006-2012 Complete Model Fitment for Hood Gas Struts | Engine Compatibility Guide
