AM28 Master Lift Gas Strut
We accept returns only for products with manufacturing quality defects
- Brand: Gastac Gas Spring
- Availability: 500
- Sales: 156

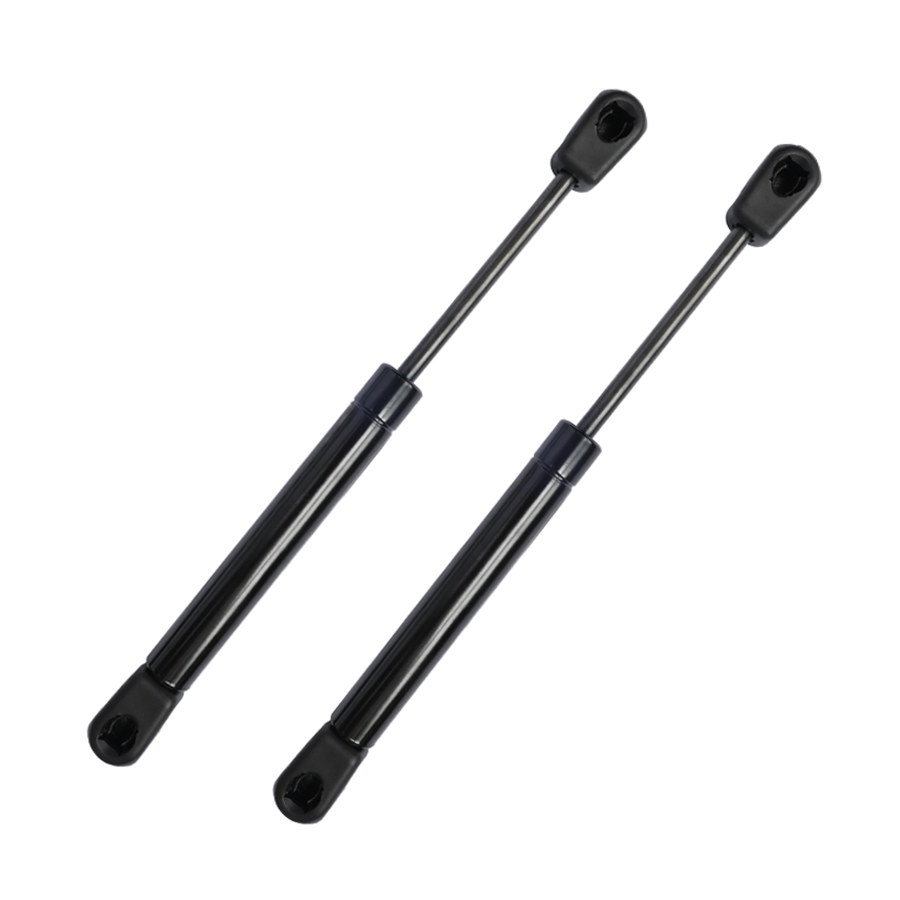

Gastac AM28 Gas Spring
The Gastac AM28 is a 10mm x 22mm Master Lift gas spring with a 30.9" extended length, 17.15" compressed length and 13.75" stroke. Choose the force that matches your original strut (30-180 lb). Both ends are 10mm nylon ball sockets.
Specification
Rod Dia (d): 10mm
Cylinder Dia (D): 22mm
Stroke (A): 13.75"

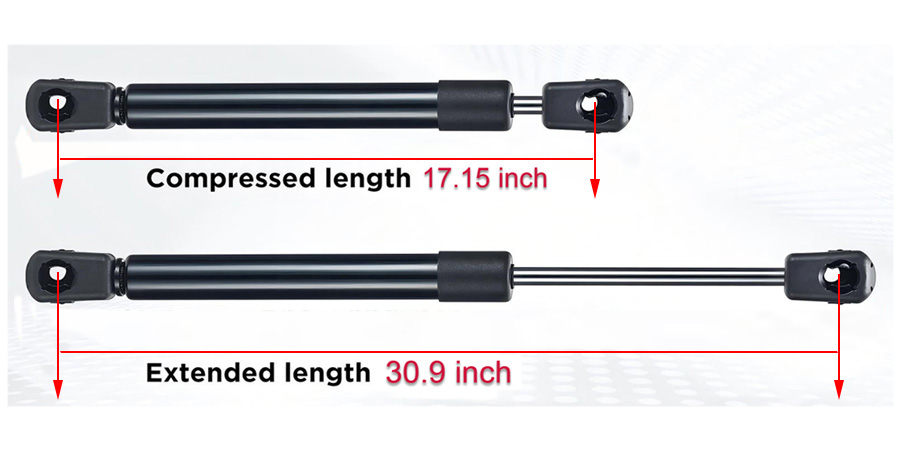

Extended Length : 30.90"
Compressed Length (CL): 17.15”
End Detail: 10mm
10mm Ball Stud
Force: 30 to 180 Lbs.
End fittings: 10mm nylon ball sockets (both ends). 10mm ball studs sold separately.
Cross Reference: Compare to : ML28-30, ML28-35, ML28-40, ML28-45, ML28-50, ML28-55 ML28-60, ML28-65, ML28-70, ML28-75, ML28-80, ML28-85, ML28-90, ML28-95, ML28-100, ML28-110, ML28-115, ML28-120, ML28-125, ML28-130, ML28-135, ML28-140, ML28-145, ML28-150, ML28-155, ML28-160, ML28-165, ML28-170, ML28-175, ML28-180 * Cross Reference: Compare to : Attwood SL28-30-1, SL28-35-1, SL28-40-1, SL28-45-1, SL28-50-1, SL28-55-1, SL28-60-1, SL28-65-1, SL28-70-1, SL28-75-1, SL28-80-1, SL28-85-1, SL28-90-1, SL28-95-1, SL28-100-1, SL28-110-1, SL28-115-1, SL28-120-1, SL28-125-1, SL28-130-1, SL28-135-1, SL28-140-1, SL28-145-1, SL28-150-1, SL28-155-1, SL28-160-1, SL28-165-1, SL28-170-1, SL28-175-1, SL28-180-1 ML28-100 (8831QJ), ML28-80 (8828QH)

Key Features of Gastac Gas Spring
- Nitrided piston rod delivers long-lasting, corrosion-resistant performance
- Backed by a free 2-year warranty for peace of mind
- Factory-direct Gastac Gas Spring for consistent quality and value
- We accept returns only for products with manufacturing quality defects
- Fast delivery: typically ships within 5–10 business days
FAQ
Q: How do I choose the right force?A: Read the force stamped on your old strut (in lb or N) and match it. If unreadable, measure the lid weight and mounting geometry or contact us with a photo.
Q: Are ball studs included?
A: No. The strut has 10mm ball sockets at both ends; 10mm ball studs are sold separately.
Q: Is this an Attwood gas spring?
A: No. It is a Gastac AM28 cross-referenced to Attwood SL28 series. Verify your original part number and dimensions before ordering.
Q: Should I replace both struts?
A: Yes. Replacing in pairs keeps lift balanced and avoids uneven wear.
