GTB200 Hydraulic Gate Closers- Premium Replacement for Lockey TB200

The GASTAC GTB200 Hydraulic Gate Closer is a direct replacement for Lockey TB200, designed for pedestrian gates weighing 50–125 lbs and up to 52 inches wide. Featuring hydraulic and nitrogen gas controlled closing, the GTB200 provides smooth, quiet, and consistent gate closing performance for residential and commercial applications.

GTB200 Hydraulic Gate Closers Dimensions & Specifications

• Cross reference: Lockey TB200
• Gate Weight: 50–125 lbs
• Gate Width: 30–52″
• Max Opening Angle: 100°
• Min Operating Temperature: 15°F*
• Max Operating Temperature: 122°F*
• Gate Material: Vinyl, Steel, Wood, Chain Link**
• Closing Method: Hydraulic / Nitrogen Gas
• Finish: GTB200: Painted (Black)
• Hinge Arrangements: In-line or Offset
• Opening Pressure: Approx. 3–7 lbs

The GASTAC GTB200 Hydraulic Gate Closer is a direct replacement for Lockey TB200, designed for pedestrian gates weighing 50–125 lbs and up to 52 inches wide. Featuring hydraulic and nitrogen gas controlled closing, the GTB200 provides smooth, quiet, and consistent gate closing performance for residential and commercial applications.

Built with high-quality materials, improved seals, and a premium cylinder, the GTB200 delivers reliable performance for vinyl, steel, wood, and chain link gates. Its preset closing speed and durable construction make it an ideal solution for pedestrian gates requiring controlled self-closing operation in pools, offices, parking areas, resorts, and other commercial environments.

Key Features of Hydraulic Gate Closers

• Nitrided piston rod delivers long-lasting, corrosion-resistant performance
• Reliable lifespan of up to 60,000 cycles
• Backed by a free 2-year warranty for peace of mind
• Factory-direct Gastac Gas Spring for consistent quality and value
• Free, easy returns if the product does not fit
• Fast delivery: typically ships within 5–10 business days

GTB200 Hydraulic Gate Closers Videos

GTB200 Hydraulic Gate Closers Features

• Suitable for gates weighing 50–125 lbs
• Hydraulic / Nitrogen gas controlled closing speed
• Can be installed on top, middle, or bottom of the gate
• Compatible with left-hand and right-hand gates
• Mounts on the opening side of the gate and pushes it closed

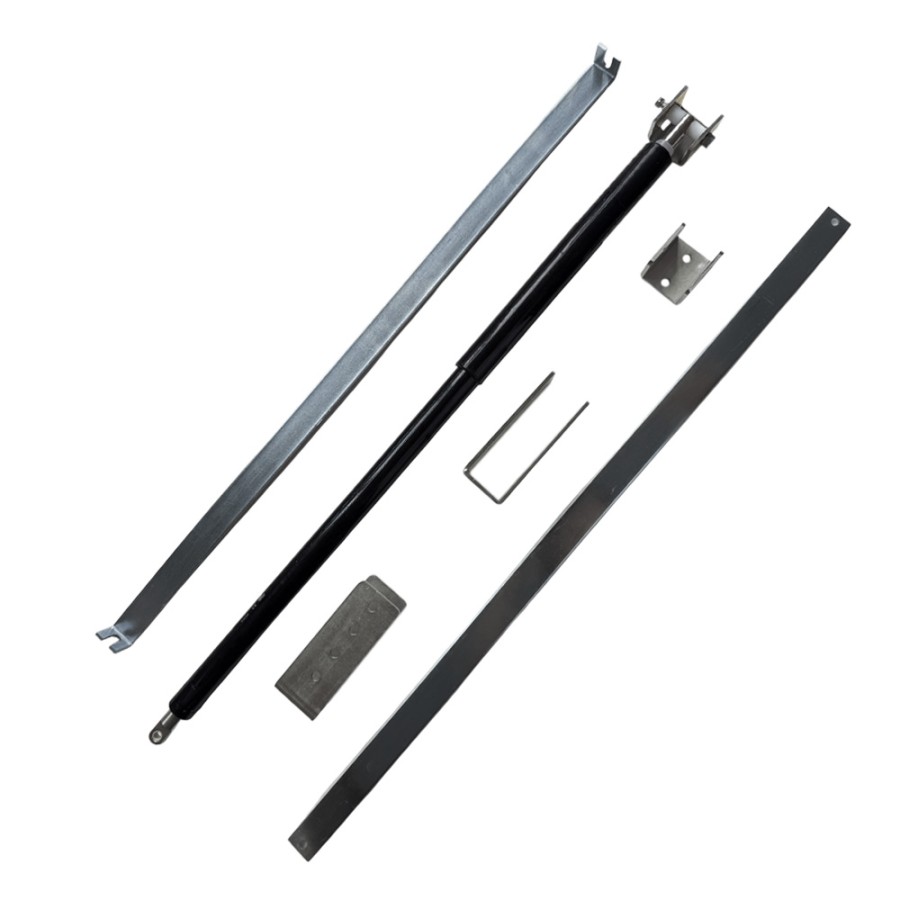

• Mounting brackets and fitting bar included
• Not compatible with gates less than 30 inches wide
• Requires a gate stop to retain warranty and limit opening angle

GTB200 Hydraulic Gate Closers Appliactions
